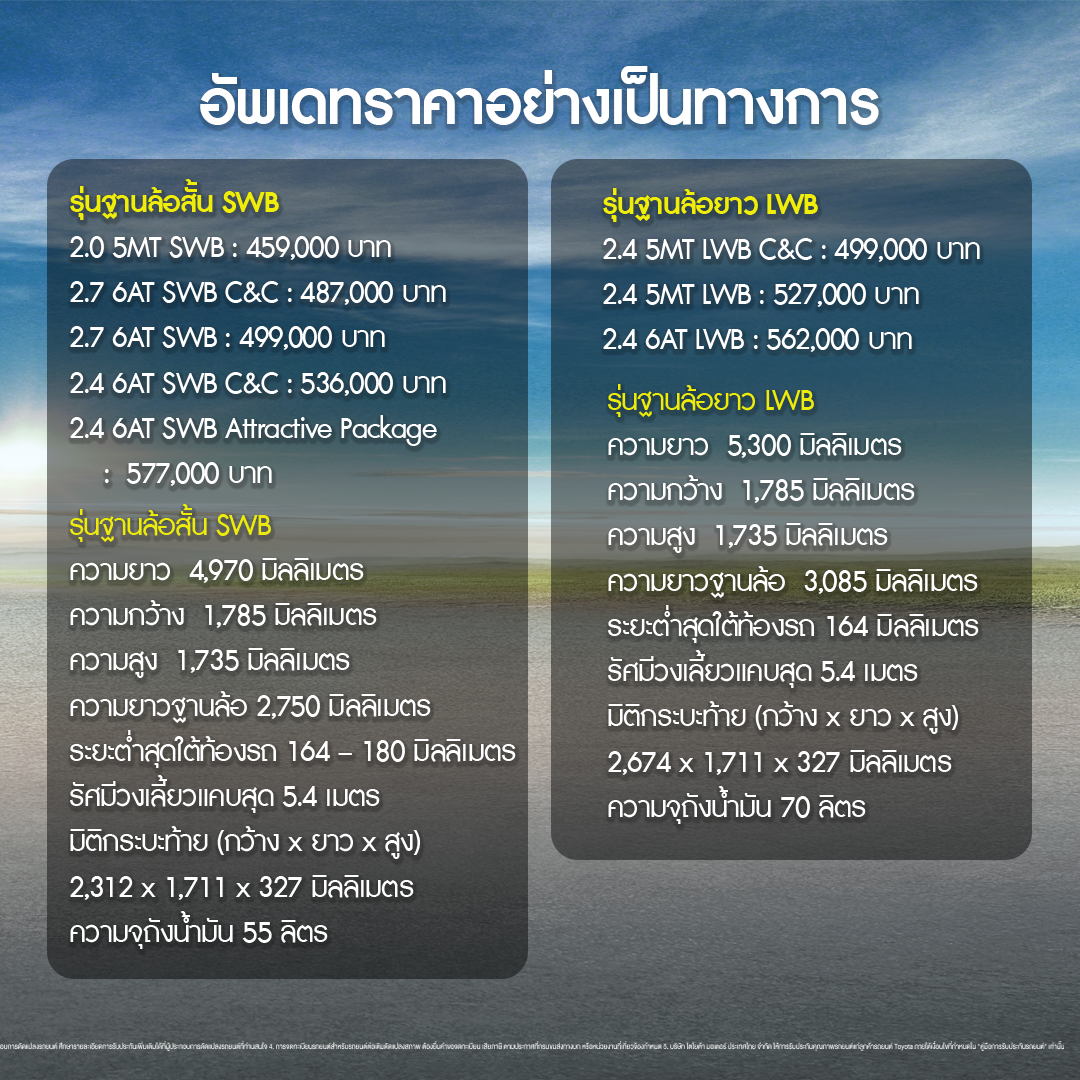

Official price Toyota Hilux CHAMP
Short wheelbase SWB model
2.0 5MT SWB : 459,000 baht
2.7 6AT SWB C&C : 487,000 baht
2.7 6AT SWB : 499,000 baht
2.4 6AT SWB C&C : 536,000 baht
2.4 6AT SWB Attractive Package : 577,000 baht
Long wheel base model LWB
2.4 5MT LWB C&C : 499,000 baht
2.4 5MT LWB : 527,000 baht
2.4 6AT LWB : 562,000 baht
Short wheelbase SWB model
Length 4,970 millimeters
Width 1,785 millimeters
Height 1,735 millimeters
Wheelbase length 2,750 millimeters
Minimum distance under vehicle 164 – 180 mm.
The narrowest turning radius is 5.4 meters.
Tailgate dimensions (width x length x height) 2,312 x 1,711 x 327 millimeters
Fuel tank capacity 55 liters
Long wheel base model LWB
Length 5,300 millimeters
Width 1,785 millimeters
Height 1,735 millimeters
Wheelbase length 3,085 millimeters
Minimum distance under vehicle: 164 millimeters
The narrowest turning radius is 5.4 meters.
Tailgate dimensions (width x length x height) 2,674 x 1,711 x 327 millimeters
Fuel tank capacity 70 liters
Exterior dimensions compared to Toyota Hilux Revo (Width x Length x Height / Wheelbase)
Hilux Champ SWB : 2,312 x 1,711 x 327 mm.
Hilux Champ LWB : 5,300 x 1,785 x 1,735 / 3,085 millimeters
Hilux Revo Standard Cab SWB: 4,930 x 1,800 x 1,685 / 2,750 mm.
Hilux Revo Standard Cab: 5,265 x 1,800 x 1,690 / 3,085 millimeters
Tailgate dimensions compared to Toyota Hilux Revo (width x length x height)
Hilux Champ SWB : 1,785 x 1,735 / 2,750 millimeters
Hilux Champ LWB : 2,674 x 1,711 x 327 mm.
Hilux Revo Standard Cab SWB: 1,980 x 1,575 x 480 mm.
Hilux Revo Standard Cab: 2,315 x 1,575 x 480 mm.
Engine and transmission
Engine & Drivetrain
Gasoline 2.0 liters
Engine code 1TR-FE, 4-cylinder gasoline, DOHC, 16 valves, 1,998 cc. Cylinder x Stroke 86.0 x 86.0 mm. (Square combustion chamber), compression power 10.4 : 1, fuel supplied with EFI injectors with Dual VVT-i variable valve system, power Maximum 139 horsepower (PS) at 5,600 rpm/min. Maximum torque 183 Newton meters at 4,000 rpm/min, paired with a 5-speed manual transmission, rear-wheel drive.
Gasoline 2.7 liters
Engine code 2TR-FE, 4-cylinder gasoline, DOHC 16 valves, 2,694 cc. Cylinder x stroke 95.0 x 95.0 mm. (Square combustion chamber), compression 10.2 : 1, fuel supplied with EFI injectors with Dual VVT-i variable valve system, power Maximum 166 horsepower (PS) at 5,200 rpm/min, maximum torque 245 Nm at 4,200 rpm/min, paired with 6-speed automatic transmission with Sequential Shift to drive the rear wheels.
Diesel 2.4 liter Turbo (5MT)
Engine code 2GD-FTV, diesel, 4 cylinders, DOHC, 16 valves, size 2.4 liters, 2,393 cc, cylinder x stroke length 92.0 x 90.0 millimeters, compression power 15.6 : 1, fuel injection with i-ART injectors via Commonrail rails, turbocharged air compressor system with intercooler. Maximum power 150 horsepower (PS) at 3,400 rpm/min. Maximum torque 343 Nm at 1,400 – 2,800 rpm/min, paired with a 6-speed manual transmission, rear wheel drive.
Diesel 2.4 liter Turbo (6AT)
Engine code 2GD-FTV, diesel, 4 cylinders, DOHC, 16 valves, size 2.4 liters, 2,393 cc, cylinder x stroke length 92.0 x 90.0 millimeters, compression power 15.6 : 1, fuel injection with i-ART injectors via Commonrail rails, turbocharged air compressor system with intercooler. Maximum power 150 horsepower (PS) at 3,400 rpm/min. Maximum torque 400 Nm at 1,600 – 2,000 rpm/min, paired with a 6-speed automatic transmission with Sequential Shift to drive the rear wheels.
External equipment
Exterior Equipments
Black front grille and front bumper, 3 separate pieces.
Swept-back Angle bumper
Halogen headlights Multi-reflector
LED Project Lens headlights
black side mirror
Electrically adjustable side mirrors
Turn signal on side cheek
Extendable and retractable antenna
Tailgate opens in 3 ways
Tail cover lock latch
Side steps in the tailgate area
14-inch steel wheels with hub covers
Tire size 195R14C
Internal equipment
Interior Equipments
The long row of seats is split 60:40 on the driver's side and can be moved and reclined.
The seat is split 50:50 and can be moved and reclined.
Center console storage compartment For separate seats
Steering wheel adjustable in 3 directions
Driver side sunshade
Lighting inside the cabin
Electric window glass Automatically moves down on the driver's side. (except gasoline model 2.0)
Electrical equipment connector, DC 12 volts, 1 position
Storage compartment in the front console
2 cup holder positions
T-Connect connection system
2 speaker positions (no audio system)
Safety and driving assistance systems
Safety Features & Driving Assistance
GOA safety structure
3-point ELR seat belts, 2 positions with automatic retracting system
2 airbags
front pair
ABS anti-lock system
Brake reinforcement system BA
EDB brake force distribution system
Exterior body color
Exterior Colors
There are 4 colors to choose from:
Super White
White Off White
Silver Me
Gray Gray Me
